Trolley Load Ratings: What the Number Really Means

A 500 kg rating on a trolley describes what it carries on a flat, level floor, at walking pace, with the load centred and the deck undamaged. It does not describe what happens on a ramp, over a floor joint, with the load parked on one side, or after two years of eight-hour shifts. Two suppliers can both quote 500 kg and mean two different things, which is why the number on its own is the least useful part of the datasheet.

This guide covers the four numbers worth asking for, how to turn your own load into a specification, and the five situations where a published rating quietly stops being true.

Quick answer: what a load rating assumes

Why the same number means different things

Some suppliers quote the rating of the caster set they bought in. Some quote what the deck will take before it bows. Some quote the figure from a test they ran once on a similar product. Nothing on the datasheet tells you which one you are looking at, so ask for these four numbers separately, plus two extras.

On the margin, a common approach for manual trolleys is to size the casters and frame for roughly two to three times the load they are actually expected to see. Ask what figure was used. A supplier who cannot answer is quoting a number, not a design.

Turn your real load into a specification

Work through these six steps before you send an enquiry. They take ten minutes and they prevent most of the arguments that show up after delivery.

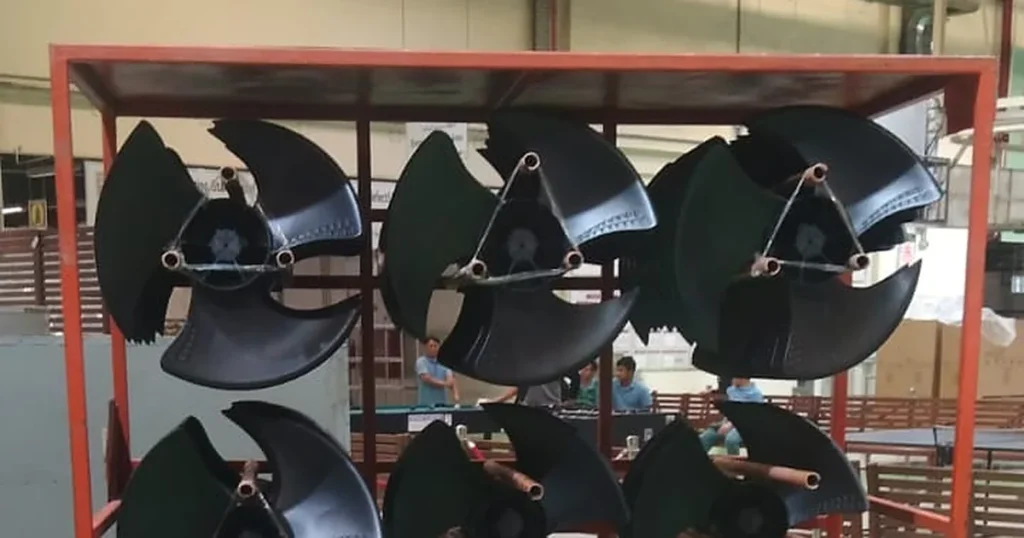

1. Add up the payload. Pieces per trip multiplied by weight per piece, plus bins, dunnage and any tooling that rides on the trolley.
2. Add the tare weight. A heavy steel trolley can weigh 60 to 120 kg empty, and that weight sits on the same wheels as your cargo.
3. Remember that three wheels carry it, not four. On any real floor the trolley rocks slightly and one wheel can lift off. Dividing the design load by three instead of four is the single most useful habit when checking a caster.
4. Add a dynamic factor. A gentle push on a smooth floor adds little. Starting on a ramp, crossing joints, or towing several trolleys in a train adds a lot more, and the spec has to reflect how you actually move it.
5. Then pick the caster with margin. Compare the per-caster share against the caster’s own rating and keep a comfortable gap, larger if the floor is bad or the route is long.
6. Check the deck separately. A distributed load figure means nothing if the same weight lands on a small patch, which is exactly what a pump, motor or machine foot does.

Where ratings fail: five situations

The first is the ramp. Starting a loaded trolley on a slope needs a much higher push force than moving it on the flat, and stopping it puts the whole load onto the downhill wheels through the brake.

The second is the floor joint. A 10 mm step or a grating edge turns a rolling load into a struck load for a fraction of a second, and that impact lands on one wheel and one caster plate.

The third is uneven loading. If the weight sits on one side, the trolley is no longer only a load problem, it is a stability problem, and a tall rack on a narrow base will tip under a side push long before it is overloaded.

The fourth is push force. A trolley can be within its rating and still be unusable because it takes 60 kg of force to start. That number comes from wheel diameter, wheel material and floor condition together, not from the load rating. Our notes on caster selection cover the wheel side of this in more detail.

The fifth is time. Ratings describe a new trolley. Repeated cycles, corrosion at a weld, a caster that has been run over a kerb, or one previous overload all reduce what the unit will actually take.

The weakest link decides, and the floor is part of the system

Load travels in one direction: cargo, then deck or shelf, then frame, then caster plate, then wheel, then floor. The rating of the trolley is really the rating of whichever part in that chain gives up first.

That last row is the one buyers most often leave out. Raised access floors, mezzanine decks and thin screeds have their own point-load limits, and a trolley that is perfectly specified can still be the wrong tool for the building it has to run in.

What to put in writing before you approve a drawing

Ask for these six items in the quotation, not in a conversation. They are the difference between a rating and a commitment.

• The rated load for the whole trolley and for each individual shelf or level.
• The caster make, model and rating, and how many casters are assumed to share the load.
• The tare weight of the finished trolley.
• The safety margin the design was checked against.
• The floor condition and load distribution the rating assumes.
• What happens if a delivered unit fails your incoming load check, in plain terms.

If a supplier can also show the calculation, the drawing revision and a photo of the load test, you are dealing with someone who designs trolleys rather than someone who forwards a catalogue. Our own checking and packing steps are described under quality control.

Frequently asked questions

Is a higher load rating always better?

No. A higher rating usually means a heavier frame, larger wheels and more steel, which raises the price and makes the trolley harder to push and to steer in a tight aisle. The right rating is the one that comfortably covers your real load, not the biggest number available.

How much can a four-wheel trolley really carry?

A practical starting point is the sum of the three weakest casters, minus the tare weight of the trolley, and then knocked down again if the floor is uneven or the load sits off-centre. Treat any figure that simply adds up four casters as an optimistic one.

Does the load rating change with the wheel type?

Yes. The same caster body can carry different loads depending on the wheel fitted and its diameter, and wheels behave differently on different floors. A specification that names only the load and not the wheel is incomplete.

Can a trolley’s rating be increased later?

Sometimes, by fitting stronger casters and stiffening the deck, but the frame welds and the tube section set the real ceiling. It is usually cheaper and safer to specify the right rating at the drawing stage than to upgrade afterwards.

What is the difference between rated load and breaking load?

Rated load is what the trolley is meant to carry every day. Breaking load is where it fails. The gap between them is the safety margin, and no design should ever ask a trolley to work near its breaking load.
